620S

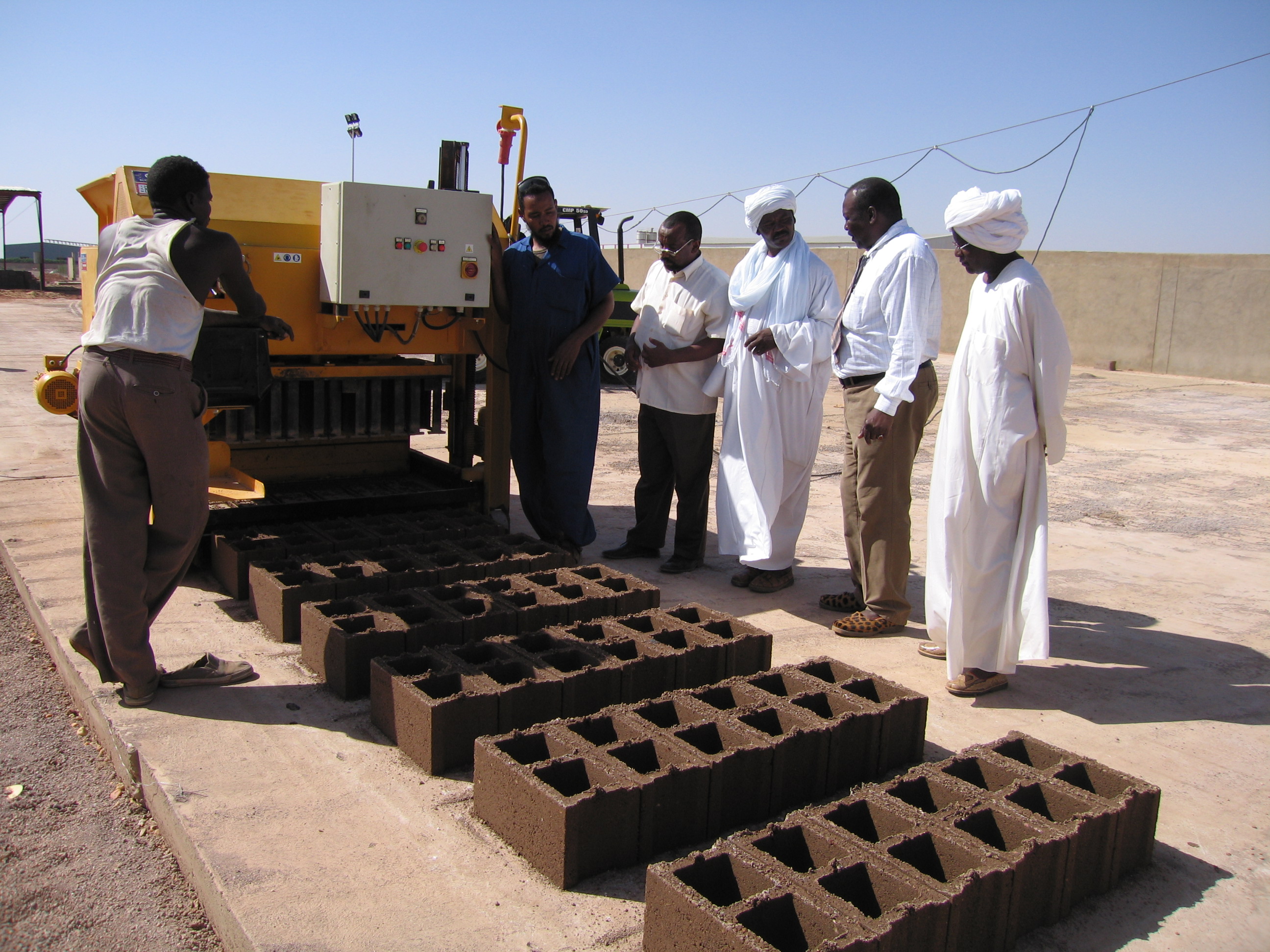

VIBROMOBILE unit (egg-laying type) ideal for in-site high-production rate of concrete agglomerate blocks. Forming is semi-automatic and compaction is achieved by the combined effect of vibration and counter-mould free fall. An 1000 lt. hopper used for stocking the aggregate on-board the machine, guarantees a very long operation without recharging. This unit implies a concrete track. A properly sized batching system will be necessary to run this block-forming machine and to guarantee the above stated production rate.

M240
M450
620S
1600M

Details

OPERATION MODE

Manuale

HOURLY PRODUCTION
(blocks 20x40x20 cms)

800/1000

PRODUCT HEIGHT

200 mm

MAX PRODUCT DIMENSIONS

120 x 40 cm

HOURLY CICLES TIMES

165

BLOCKS 20*40*20 cms / MOLD

6

ELECTRIC INSTALLED POWER

8,2 kW – 400 V – 50/60 Hz

MACHINE DIMENSIONS

2050 x 2200 x 1800 h mm

MACHINE WEIGHT

2350 kg
