1600M

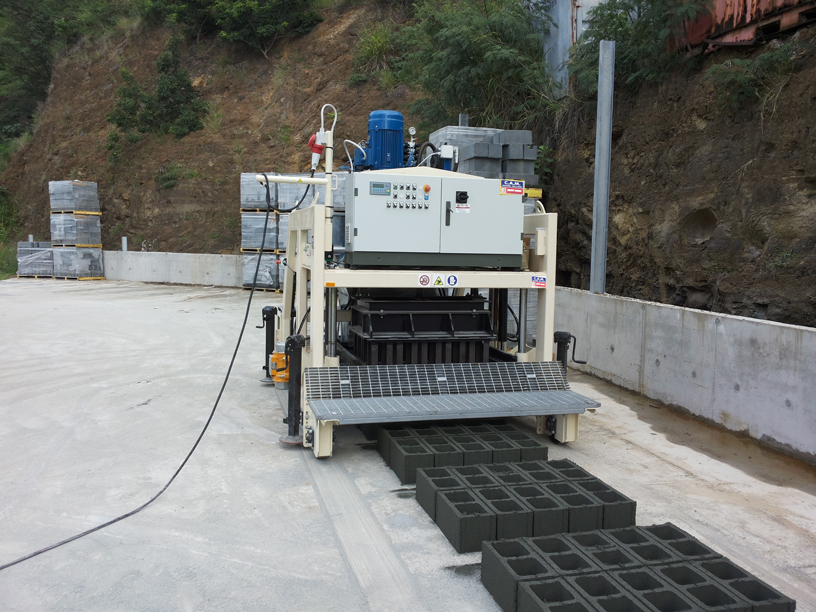

VIBROMOBILE unit (egg-laying type) ideal for in-site high-production rate of concrete agglomerate blocks. Forming is semi-automatic and compaction is achieved by the combined effect of vibration and counter-mould free fall. An 1000 lt. hopper used for stocking the aggregate on-board the machine, guarantees a very long operation without recharging. This unit implies a concrete track. A properly sized batching system will be necessary to run this block-forming machine and to guarantee the above stated production rate.

M240
M240
M240
M450
620S
1600M

Details

OPERATION MODE

Fully Automatic

HOURLY PRODUCTION
(block 20x40x20 cms)

1200/1400

PRODUCT HEIGHT

60-200 mm

MAX PRODUCT DIMENSIONS

120 x 40 cm

HOURLY CICLES TIMES

140

BLOCKS 20*40*20 cms / MOLD

10

ELECTRIC INSTALLED POWER

22 kW – 400 V – 50/60 Hz

MACHINE DIMENSIONS

2600 x 3850 x 2800 h mm

MACHINE WEIGHT

3500 kg
