1350

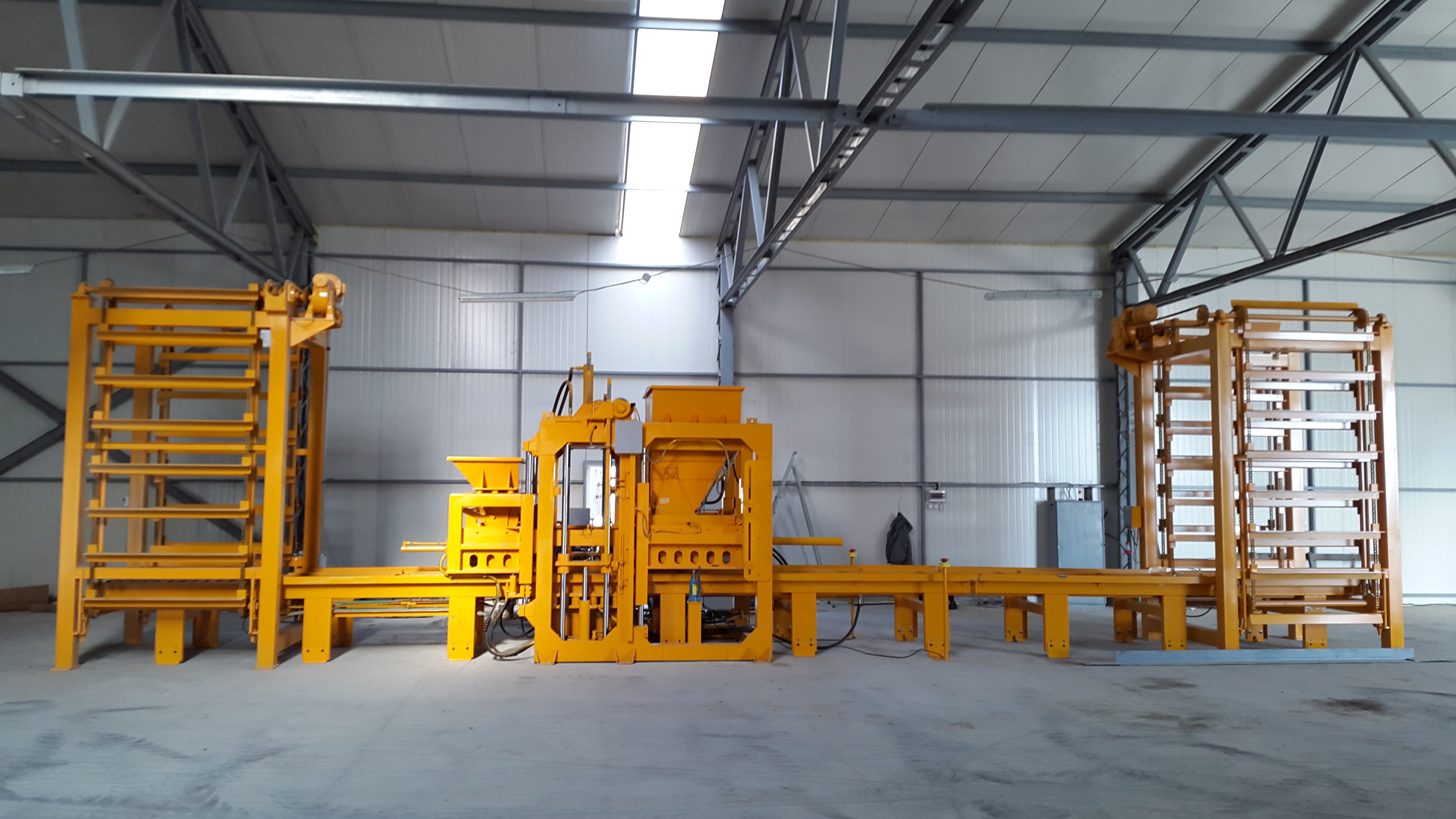

Easy to use AUTOMATIC SYSTEM, ideal for factory production of an unlimited range of prefabricated concrete agglomerates such as masonry blocks and floors, pavers, curbs etc. characterized by a large 1350 x 700 mm wooden board with high automation, an elevator system, a sliding table for forming boards. In this case, the hourly production is 1000-1200 blocks / h.

650 L
1050 L
1350

Details

OPERATION MODE

Automatic

HOURLY PRODUCTION
(block 20x40x20 cms)

1000/1200 – 95 m2

PRODUCT HEIGHT

60/300 mm

BOARDS DIMENSIONS

1350 x 700 x 40 mm

MAX PRODUCT DIMENSIONS

65 x 130 cm

HOURLY CICLES TIMES

110/130

BLOCKS 20*40*20 cms / MOLD

9

ELECTRIC INSTALLED POWER

45 kW – 400 V – 50/60 Hz

MACHINE DIMENSIONS

2056 x 13200 x 3625 h mm

MACHINE WEIGHT

1500 kg
