1050S

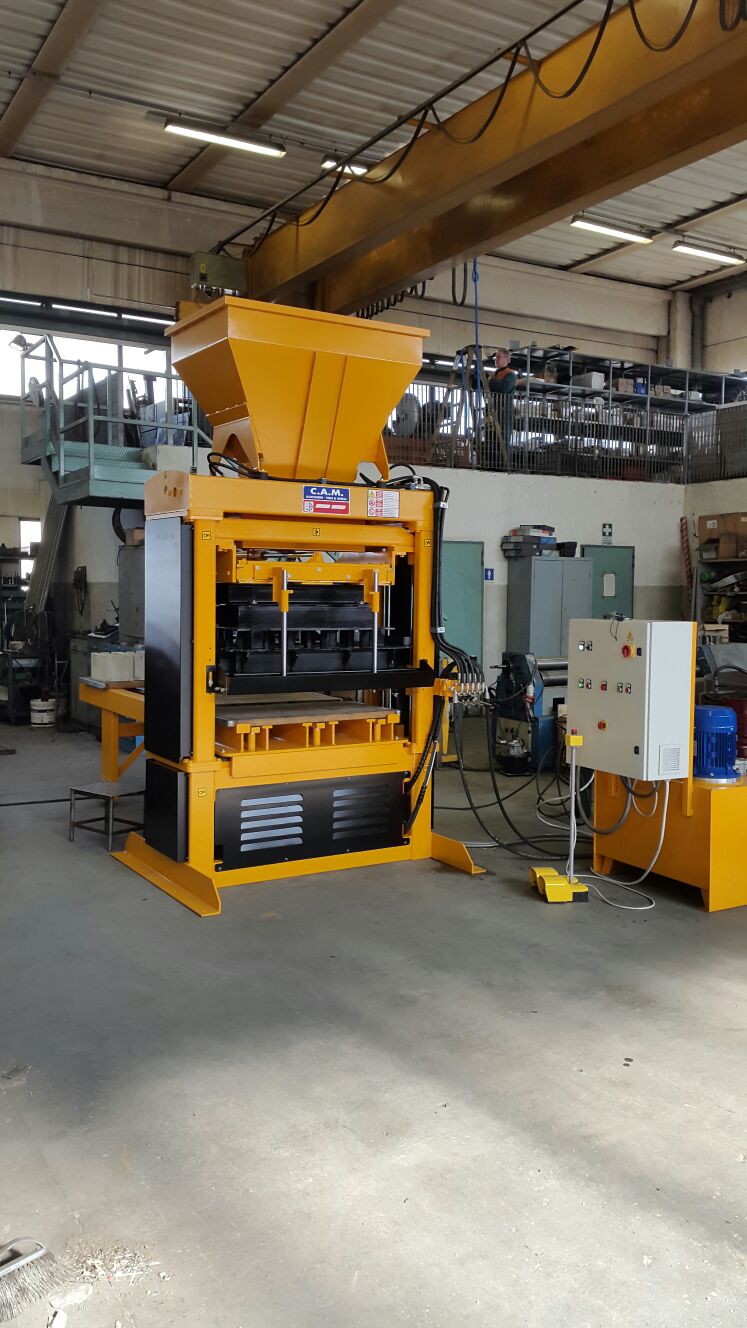

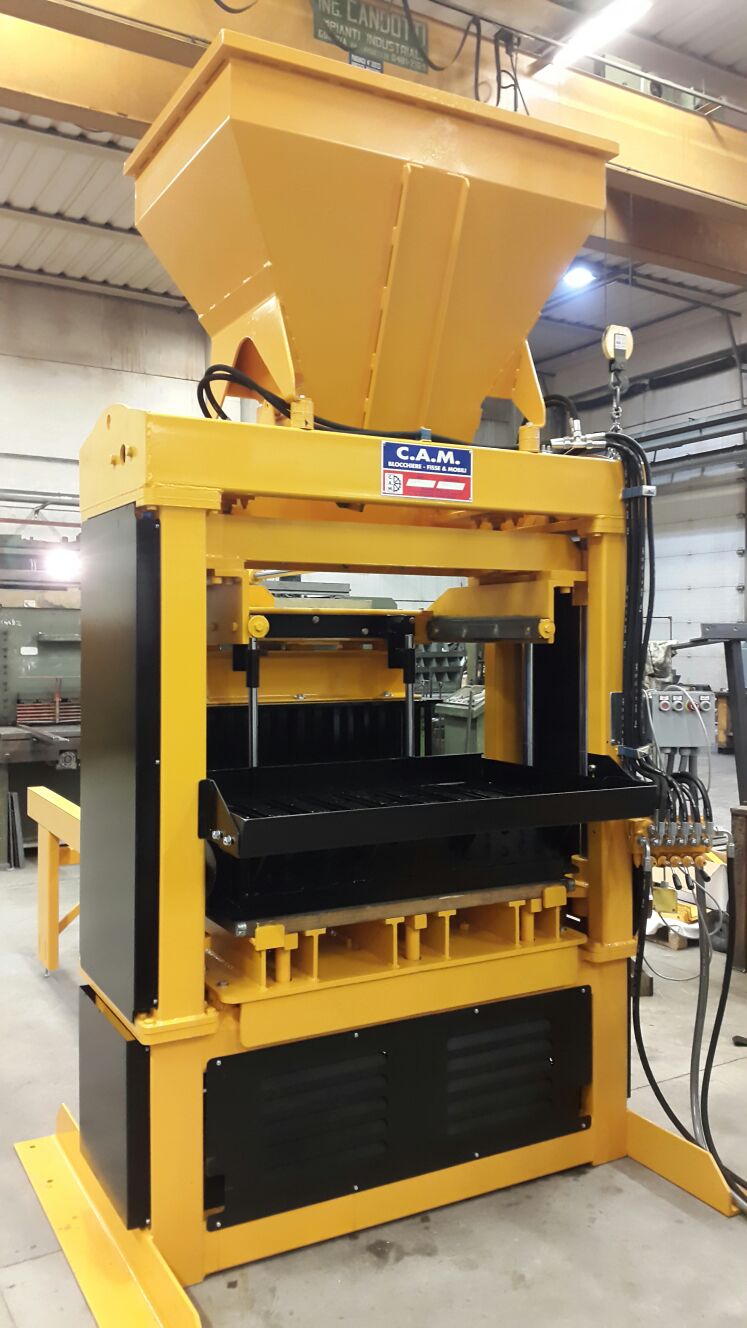

Easy to use VIBROSTATIC unit, ideal for in-factory production of an unlimited range of concrete aggregate prefabricated items such as wall and ceiling blocks, paving stones, kerbstones etc. Forming is done in semiautomatic mode and is assisted by a vibrating unit and a hydraulic oil operated counter-mould which guarantee a very high compactness of the final product. The unit is equipped with a hopper with a capacity of 250 lt. A bench located at the machine output is able to support up to 3 wooden forming boards.

M240
M240
430
650S
1050S
1050SA

Details

OPERATION MODE

Semi-automatic

HOURLY PRODUCTION
(block 20x40x20 cms)

350/400 – 35 m2

PRODUCT HEIGHT

60/300 mm

BOARDS DIMENSIONS

1130 x 600 x 40 mm

MAX PRODUCT DIMENSIONS

50 x 110 cm

HOURLY CICLES TIMES

70/80

BLOCKS 20*40*20 cms / MOLD

5

ELECTRIC INSTALLED POWER

8,2 kW – 400 V – 50/60 Hz

MACHINE DIMENSIONS

2050 x 2200 x 1800 h mm

MACHINE WEIGHT

2350 kg
